Exporting model options to the Supply Chain platform

The Platform Model Options Export action allows you to export and upload model options records from a local database table to a Supply Chain Guru model on the Supply Chain platform. Before using this action, you must create a Supply Chain Guru Cloud connection of type Coupa Supply Chain.

• The input table must include the Option, the Value, and should include the ID as a primary key. The Category Name is not required for export.

• This action updates the values for the options.

• If any of the options you are exporting have not already been defined in the model, those options are created.

• This action does not delete existing options.

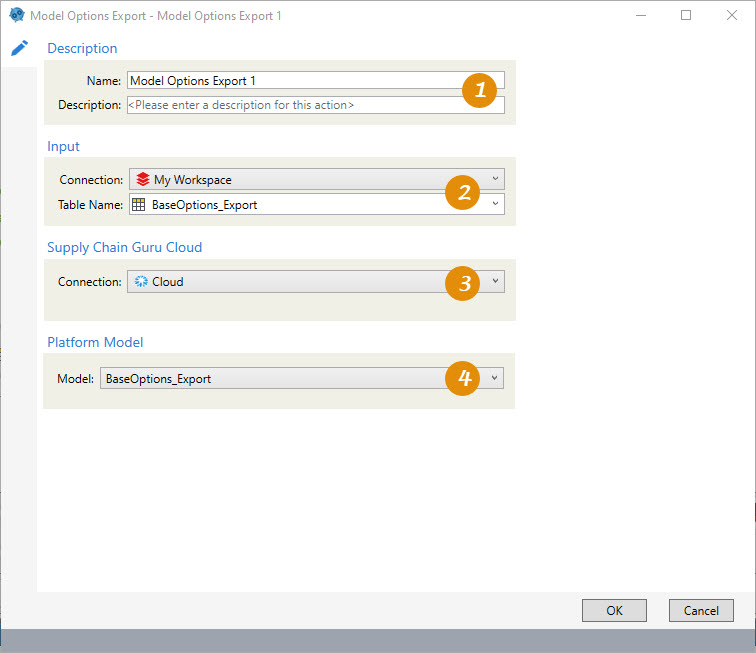

1. Enter a name and description.

2. Select or create input connection and select table for export.

3. Specify connection to Supply Chain platform.

4. Select platform model.

The most common application is to upload data from a local database to initialize or refresh your data on Supply Chain.

Supported model options

The table below lists the currently supported model options and provides the acceptable values when exporting to the platform. Note that TRUE, FALSE values are not case-sensitive. The Category Name defines which aspect of the model the options belong to.

Category Name	Option	Example Value	Valid Values	Notes
DemandAnalysisModelOptions	Days In Work Week	5	5, 7
DemandAnalysisModelOptions	Aggregation Level	Day	Day, Week, Month
DemandAnalysisModelOptions	Work Week Scaling	FALSE	TRUE, FALSE
DemandAnalysisModelOptions	Demand Size	1	Positive number
DemandAnalysisModelOptions	Frequency Threshold	3	Positive number
DemandAnalysisModelOptions	Outlier Threshold	10	Positive number
DemandAnalysisModelOptions	Intermittency Threshold	1.32	Positive number
DemandAnalysisModelOptions	Dispersion Threshold	0.49	Positive number
DemandAnalysisModelOptions	Variability Threshold	4	Positive number
DemandAnalysisModelOptions	Clumpiness Threshold	1	Positive number
DemandAnalysisModelOptions	Report Zero Demand	FALSE	TRUE, FALSE
DemandAnalysisModelOptions	Demand Propagation Method	DemandSeries	DemandSeries, Formula
DemandAnalysisModelOptions	Smooth Demand	FALSE	TRUE, FALSE
DemandAnalysisModelOptions	Include Customers	TRUE	TRUE, FALSE
DemandAnalysisModelOptions	Include site propagation	TRUE	TRUE, FALSE
DemandAnalysisModelOptions	Demand Is Dirty	TRUE	TRUE, FALSE
GeneralModelOptions	Inventory Carrying Cost	12	0 through 100
GeneralModelOptions	Transport Default Speed	55	0 through 250
GeneralModelOptions	Discount Rate	0	0 through 100
GeneralModelOptions	Circuity Factor	17	-100 through 100
GeneralModelOptions	Compact Repair Frequency	0		Not used
GeneralModelOptions	Minimal Mode	FALSE	TRUE, FALSE
GeneralModelOptions	Network Optimization	TRUE	TRUE, FALSE
GeneralModelOptions	Inventory Optimization	TRUE	TRUE, FALSE
GeneralModelOptions	Transportation Optimization	TRUE	TRUE, FALSE
GeneralModelOptions	Simulation	TRUE	TRUE, FALSE
GeneralModelOptions	Animate maps (turning animation off may improve map performance)	TRUE	TRUE, FALSE
GeneralModelOptions	Model Culture	en-US	One of a list of valid cultures such as fr-FR, es-ES, etc.
GreenFieldModelOptions	Number of Greenfield Sites	1	Positive integer
GreenFieldModelOptions	Customer Cluster Radius	50	Positive integer
GreenFieldModelOptions	Use Max Sourcing Distance	FALSE	TRUE, FALSE
GreenFieldModelOptions	Max Distance	-1	-1, positive number
GreenFieldModelOptions	Use Customer Cluster Radius	FALSE	TRUE, FALSE
GreenFieldModelOptions	Exclude all existing sites	TRUE	TRUE, FALSE
InfeasibilityAnalysisModelOptions	Safety Stock Optimization Infeasibility Diagnosis	FALSE	TRUE, FALSE
OptimizationModelOptions	Enable Core Modeling	FALSE	TRUE, FALSE
OptimizationModelOptions	Optimization Objectives	MinCosts	MaxProfit, MinCosts, Sequential
OptimizationModelOptions	Bundle Demand	FALSE	TRUE, FALSE
OptimizationModelOptions	Classify Demand by Due Date	FALSE	TRUE, FALSE
OptimizationModelOptions	Site Single Sourcing	FALSE	TRUE, FALSE
OptimizationModelOptions	Product Single Sourcing	FALSE	TRUE, FALSE
OptimizationModelOptions	Single BOM Sourcing	FALSE	TRUE, FALSE
OptimizationModelOptions	Single Process Sourcing	FALSE	TRUE, FALSE
OptimizationModelOptions	Single Routing Rule	FALSE	TRUE, FALSE
OptimizationModelOptions	Use Only Customer Flows For DOS	FALSE	TRUE, FALSE
OptimizationModelOptions	Network Optimization Constraint File	None		Not used
OptimizationModelOptions	Preserve Customer Links	TRUE	TRUE, FALSE
OptimizationModelOptions	Preserve Inter-Site Links	FALSE	TRUE, FALSE
OptimizationModelOptions	Relative Gap (%)	0.01	Positive number
OptimizationModelOptions	Absolute Gap	0	Positive number
OptimizationModelOptions	Cutoff Value
OptimizationModelOptions	Time Limit (secs)	3600	Positive number
OptimizationModelOptions	Presolve	Use all	Use all, Do not use any, Use all except integer reductions
OptimizationModelOptions	Feasibility Tolerance	1.00E-06	Positive number
OptimizationModelOptions	MIP Tolerance	5.00E-06	Positive number
OptimizationModelOptions	Cut Strategy	Automatic (-1)	Automatic (-1), None (0), Basic (1), Moderate (2), Aggressive (3)	The name must include the number; that is, Automatic (-1) not Automatic.
OptimizationModelOptions	Heuristic Strategy	Automatic (-1)	Automatic (-1), None (0), Basic (1), Moderate (2), Aggressive (3)	The name must include the number; that is, Automatic (-1) not Automatic.
OptimizationModelOptions	Automatic Calculations	Simple	Simple, Basic, Enhanced, Extensive
OptimizationModelOptions	Constraint Summary Output Detail	All	All, Major, None
OptimizationModelOptions	Produce LP File	FALSE	TRUE, FALSE
OptimizationModelOptions	Solution Method	Solve Optimally	Solve Optimally, Solve As A Linear Program, Multi-Phase Facility Selection
OptimizationModelOptions	Skip Objective Function	FALSE	TRUE, FALSE
OptimizationModelOptions	Generate Solution History	FALSE	TRUE, FALSE
OptimizationModelOptions	Calibrate Data Before Optimization	TRUE	TRUE, FALSE
OptimizationModelOptions	Bypass Cost To Serve Dynamic View	FALSE	TRUE, FALSE
OptimizationModelOptions	Ignore Infeasible Constraints	TRUE	TRUE, FALSE
OptimizationModelOptions	Multiple Make Paths	TRUE	TRUE, FALSE
OptimizationModelOptions	Product Flow Bounds	Automatic	Automatic, UserDefined, LogicConstraints	Automatic used with another option: BigM_Aggression which can be Simple, Basic, Enhanced, or Extensive.
OptimizationModelOptions	Diagnosis Type	Constraint	Constraint, ConstraintAndStructure
OptimizationModelOptions	Site Selection Criteria	MinimizeSites	NumberOfSites, MinimizeSites
OptimizationModelOptions	Service Constraint Basis	PercentCustomer	PercentDemand, PercentCustomers
OptimizationModelOptions	Site Location Options	Optimal	Optimal, ClosestCity
OptimizationModelOptions	User Defined Value	-1	-1, positive number
OptimizationModelOptions	Allow Cross Period Flows	FALSE	TRUE, FALSE
OptimizationModelOptions	Allow Cross Period Production	FALSE	TRUE, FALSE
OptimizationModelOptions	Ignore Work Center Hard Time Constraints	FALSE	TRUE, FALSE
OptimizationModelOptions	Enforce Integer Number of Lots	FALSE	TRUE, FALSE
OptimizationModelOptions	Apply Single Changeover Time If There IS A Non-zero Process Flow	FALSE	TRUE, FALSE
OptimizationModelOptions	Lot Size As Min Production	FALSE	TRUE, FALSE
OptimizationModelOptions	By-Product Disposal Cost	12.75	Numeric value
OptimizationModelOptions	Demand Aggregation Period	1	Positive integer
OptimizationModelOptions	NO Continue Until Solution Found	TRUE	TRUE, FALSE
OptimizationModelOptions	Customer Model Demand	Yes	Yes, No
OptimizationModelOptions	Site Model Demand	Yes	Yes, No
OptimizationModelOptions	Partitioning Type	None	None, Customer, Period, Product, Lane, Demand, Site
OptimizationModelOptions	Number of Partitions	10	Positive integer
OptimizationModelOptions	Max Run Time Per Subproblem (secs)	1800	Positive integer
OptimizationModelOptions	Optimality Gap Per Subproblem (%)	0.05	Positive number
OptimizationModelOptions	Number of Decompositions	5	Positive integer
SimulationModelOptions	Number of replications	1	Positive integer
SimulationModelOptions	Scripting Debug Level	0		Not used
SimulationModelOptions	Inventory Value	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Inventory Volume	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	In-Transit Quantity	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Back-Order Units	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Order Cycle Time	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Reorder Point	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Order Up To Quantity	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Transportation Assets	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Mileage Log	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Handling Log	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Ambush Log	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Destroyed Consignments Log	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Work Centers	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Work Resources	None	None, Time Series	Time Series is not currently supported in Model Options Export.
SimulationModelOptions	Site Order Queue	Queue Depth	None, Queue Depth, Time In Queue, Both
SimulationModelOptions	Site Back-Order Queue	Queue Depth	None, Queue Depth, Time In Queue, Both
SimulationModelOptions	Site Inbound Shipment Queue	Queue Depth	None, Queue Depth, Time In Queue, Both
SimulationModelOptions	Site Outbound Shipment Queue	Queue Depth	None, Queue Depth, Time In Queue, Both
SimulationModelOptions	Lane Consignment Queue	Queue Depth	None, Queue Depth, Time In Queue, Both
SimulationModelOptions	Mode Consignment Queue	Queue Depth	None, Queue Depth, Time In Queue, Both
SimulationModelOptions	Transportation Asset Consumer Queue	Queue Depth	None, Queue Depth, Time In Queue, Both
SimulationModelOptions	Work Resource Consumer Queue	Queue Depth	None, Queue Depth, Time In Queue, Both
SimulationModelOptions	Allow Back-Orders	FALSE	TRUE, FALSE
SimulationModelOptions	Select Python Script Folder			Not used
SimulationModelOptions	Log to file	FALSE	TRUE, FALSE	.
SimulationModelOptions	Use log file name from model	FALSE	TRUE, FALSE
SimulationModelOptions	Use a custom log file name	FALSE	TRUE, FALSE
SimulationModelOptions	Log File Name		Text value
SimulationModelOptions	Advanced Inventory Stats	None		Not used
SimulationModelOptions	Demand Transactions	TRUE	TRUE, FALSE
SimulationModelOptions	Shipment Transactions	TRUE	TRUE, FALSE
SimulationModelOptions	Production Transactions	TRUE	TRUE, FALSE
SimulationModelOptions	Production process Transactions	TRUE	TRUE, FALSE
SimulationModelOptions	Order Transactions	TRUE	TRUE, FALSE
SimulationModelOptions	Mileage Transactions	FALSE	TRUE, FALSE
SimulationModelOptions	Handling Transactions	FALSE	TRUE, FALSE
SimulationModelOptions	Ambush Transactions	FALSE	TRUE, FALSE
TransportationModelOptions	Problem Type	1	0, 1, 3, 6, 22, 32, 35	0=Auto Detect, 1=Standard, 3=Backhaul Optimization, 6=BackhaulMatch, 22=Periodic Optimization, 32=Interleaved, 35=Hub Optimization
TransportationModelOptions	Solver Setting	2	1, 2, 3, 4, 5	1=Fast, 2=Fast, Basic Search, 3=Balanced, 4= Slower, Expanded Search, 5=Detailed
TransportationModelOptions	Begin Time Horizon	1/1/2023 0:00		Not used
TransportationModelOptions	End Time Horizon	12/31/2023 0:00		Not used
TransportationModelOptions	Distance Factor	1.17	Numeric value
TransportationModelOptions	Use Local Time	TRUE	TRUE, FALSE
TransportationModelOptions	Unit of Measure	1	1, 2, 3	1=Quantity, 2=Weight, 3=Volume
TransportationModelOptions	Periodic Demand Distribution	0	0, 1	0=Cyclic, 1=Even
TransportationModelOptions	Deviation from Average Shipment Size (%)	10	Numeric value
TransportationModelOptions	Treat Deviation Percentage As A Hard Constraint	FALSE	TRUE, FALSE
TransportationModelOptions	Rate Type	0	0, 1, 2, 3	0=Location Independent, 1=Origin Dependent, 2=Origin and Furthest Destination Dependent, 3=Origin and Last Destination Dependent
TransportationModelOptions	Use distance cost as whole route cost	TRUE	TRUE, FALSE
TransportationModelOptions	Distance Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Reposition Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Service Time Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Wait Time Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Break Time Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Per Stop Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Per Unit Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Drive Time Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Variable Overnight Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Duty Time Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Minimum Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Fixed Overnight Cost	FALSE	TRUE, FALSE
TransportationModelOptions	Last-In First-Out when loading and unloading	TRUE	TRUE, FALSE
TransportationModelOptions	Optimize Fleet Size	TRUE	TRUE, FALSE
TransportationModelOptions	Assign a unique driver to each asset	FALSE	TRUE, FALSE
TransportationModelOptions	TO Shipment Decomposition Type	PreConfigured_Column
TransportationModelOptions	Auto-Detect Shipments Decomposition Field	FALSE	TRUE, FALSE
TransportationModelOptions	Shipments Decomposition Field	ShipmentOriginState	None, ShipmentOriginState, ShipmentOriginCountry, ShipmentOriginZipCode, ShipmentOrigin3DigitZip, ShipmentOriginOrganization, ShipmentOriginTransportationRegion, ShipmentDestinationState, ShipmentDestinationCountry, ShipmentDestinationZipCode, ShipmentDestination3DigitZip, ShipmentDestinationOrganization, ShipmentDestinationTransportationRegion, OrderDateDay, DueDateDay, EarliestPickupDateDay, LatestPickupDateDay, Auto-Detect
SafetyStockModelOptions	Service Definition	Type1	Type1, Type2, Type2UnderShoot, Type3
SafetyStockModelOptions	Lead Time Bucket Precision (Days)	Auto	Auto, positive integer
SafetyStockModelOptions	Auto Run Infeasibility Diagnosis for SSO	FALSE	TRUE, FALSE
SafetyStockModelOptions	Safety Stock Rule	MultiEchelon	MultiEchelon, SingleEchelon
SafetyStockModelOptions	SSO Continue Until Solution Found	TRUE	TRUE, FALSE
SafetyStockModelOptions	Safety Stock Optimization Solution Method	Automatic	Automatic, LP, DP
SafetyStockModelOptions	Piecewise Node	5	Integer values 3 through 9
SafetyStockModelOptions	Inventory Policy Override	R,Q	R,Q, s,S, T,S, BaseStock
SafetyStockModelOptions	Post Process Random Lead Time	TRUE	TRUE, FALSE
SafetyStockModelOptions	Single Solution Multi-Period	FALSE	TRUE, FALSE
SafetyStockModelOptions	Calculate Upstream Service Failure	FALSE	TRUE, FALSE
SafetyStockModelOptions	Minimum Service Time	TRUE	TRUE, FALSE
SafetyStockModelOptions	Maximum Service Time	TRUE	TRUE, FALSE
SafetyStockModelOptions	Maximum Safety Stock	TRUE	TRUE, FALSE
SafetyStockModelOptions	Non-Stocking Site	TRUE	TRUE, FALSE
SafetyStockModelOptions	Run Simulation Using Historical Demand	FALSE	TRUE, FALSE
SafetyStockModelOptions	Safety Stock Optimization Time Limit (secs)	None	None, positive integer
SafetyStockModelOptions	Allow batching using Minimum Order Quantity (MOQ)	FALSE	TRUE, FALSE
SafetyStockModelOptions	Populate Site Demand Series	TRUE	TRUE, FALSE
SafetyStockModelOptions	Allow Batching Using Replenishment Frequency	FALSE	TRUE, FALSE
SafetyStockModelOptions	Use Normal Distribution For Lead Time Demand	FALSE	TRUE, FALSE
SafetyStockModelOptions	Forecast Time Bucket	Daily	Daily, Weekly, Monthly, Quarterly, Semi Annually, Annually
SafetyStockModelOptions	Forecast Error Type	STD	STD, MAD, MAPE, Percentage
SafetyStockModelOptions	Handle Forecast Bias	FALSE	TRUE, FALSE
SafetyStockModelOptions	Forecast Bias Metric	Empirical	Empirical, TrackingSignal, NormalizedForecastMetric
SafetyStockModelOptions	Forecast Bias Method	Empirical	Empirical, TrackingSignal, NormalizedForecastMetric
InventorySimulationModelOptions	Run Multi-Echelon Inventory Simulation	FALSE	TRUE, FALSE
InventorySimulationModelOptions	Warm Up Period In Months	3	Positive integer
InventorySimulationModelOptions	Simulation Length In Months	24	Positive integer
ColumnFormatModelOptions	Numeric String Format	#,##0.
ColumnFormatModelOptions	Numeric Decimal Places	2	0 through 11
ColumnFormatModelOptions	Column Format	TRUE	TRUE, FALSE
ColumnFormatModelOptions	Numeric Use Negative Brackets	FALSE	TRUE, FALSE
ColumnFormatModelOptions	Currency String Format	C	C, c
ColumnFormatModelOptions	Currency Decimal Places	2	0 through 11
ColumnFormatModelOptions	Currency Positive Pattern	0	0, 1	0=Left, 1=Right
ColumnFormatModelOptions	Use Currency Symbol	TRUE	TRUE, FALSE
ColumnFormatModelOptions	Currency Format	FALSE	TRUE, FALSE
ColumnFormatModelOptions	Date Format	g	D, d, F, f, G, g	D=Long Date, Do not display, d=Short Date, do not display, F=Long Date, Long Time, f=Long Date, Short Time, G=Short Date, Short Time, g=Short Date, Short Time
PseudoRoutingOptions	Number of Cost Function Distance Points	5	Positive integer
PseudoRoutingOptions	Number of Cost Function Drop Size Points	5	Positive integer
PseudoRoutingOptions	Multi-Stop Apportioning Type	Automatic	Automatic, Manual
PseudoRoutingOptions	Multi-Stop Apportionment To Quantity	50	0 through 100
PseudoRoutingOptions	Distance Conversion Factor	1.18	Numeric value
PseudoRoutingOptions	Minimum Distance Between Drop Points (KM)	1	Positive number
PseudoRoutingOptions	Use Transport Region Override Area	FALSE	TRUE, FALSE
PseudoRoutingOptions	Use Transport Region Override IDD	FALSE	TRUE, FALSE
PseudoRoutingOptions	Use Vehicle Type Override IDD	FALSE	TRUE, FALSE
PseudoRoutingOptions	Run Multi-Stop Estimation with NO	FALSE	TRUE, FALSE
UnitsMeasureCurrencyModelOptions	Currency	USD	Valid Code from the Currencies table
UnitsMeasureCurrencyModelOptions	Quantity	EA	Valid UOM Name from the Units of Measure table
UnitsMeasureCurrencyModelOptions	Weight	LB	Valid UOM Name from the Units of Measure table
UnitsMeasureCurrencyModelOptions	Volume	CFT	Valid UOM Name from the Units of Measure table
UnitsMeasureCurrencyModelOptions	Time	DAY	Valid UOM Name from the Units of Measure table
UnitsMeasureCurrencyModelOptions	Area	SF	Valid UOM Name from the Units of Measure table
UnitsMeasureCurrencyModelOptions	Distance	MI	Valid UOM Name from the Units of Measure table
UnitsMeasureCurrencyModelOptions	Speed	MPH	Valid UOM Name from the Units of Measure table
UnitsMeasureCurrencyModelOptions	Days of Supply	DOS	Valid UOM Name from the Units of Measure table
